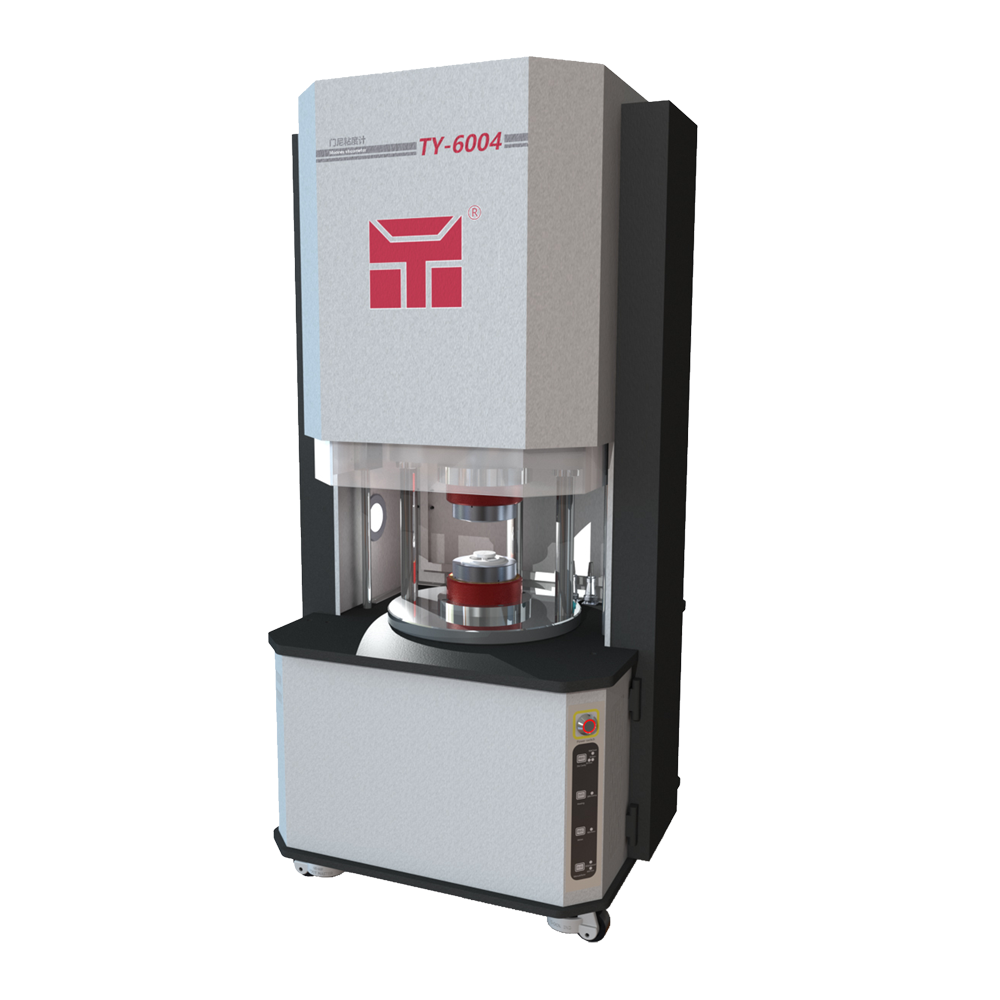

Mooney viscometer is suitable for the determination of various kinds of un-vulcanized natural rubber, synthetic rubber and reclaimed rubber Mooney viscosity, the scorch time and curing index.

GB/T 1232 Unvulcanized rubber Mooney viscometer measurement

GB/T 1233 Rubber vulcanization characteristics of the early determination of Mooney viscosity meter method
ISO289 non vulcanized rubber - shearing type plate viscometer is used to test
ISO667 rubber vulcanization characteristics of the early determination of Mooney viscosity meter method

ASTM D 1646   DIN 53525    JIS k6300

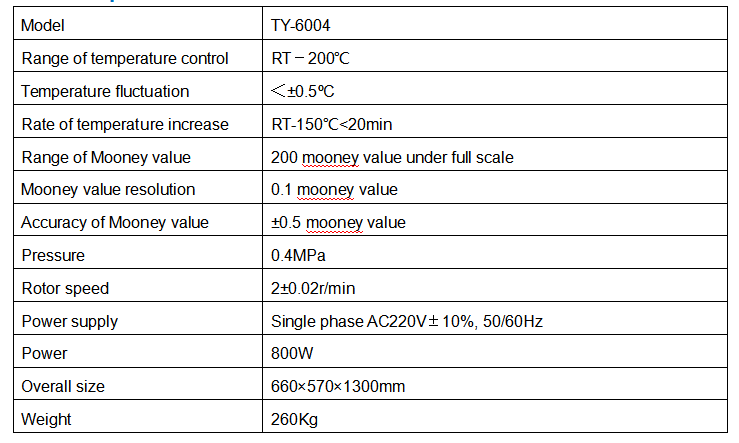

1. High precision sensors: 0 ~ 200 Mooney value. Mooney value accuracy within ±0.5 a Mooney value. Resolution: 0.1 Mooney value

2. Control system: adopting computer control + Integrated circuit for data collection, storage, processing and printing test results and curve processing, the default time to extend or shorten the testing process, curve, history curve matching, and other functions.

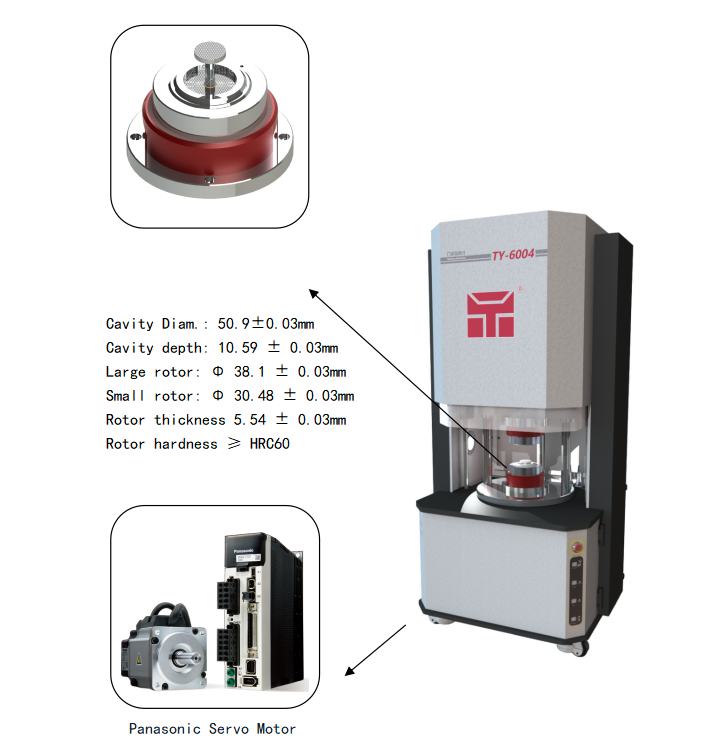

3. Rotation system: Panasonic servo motor system + amplitude regulator

4. Temperature control system: adopting intelligent digital temperature control instrument, Automatism adjust PID control parameters in real time.

5. Data transmission way: USB transmission

6. Display mode: TY Viscosity test software, computer monitor display.

7 Rotor: Cr6wv material, high strength and abrasion resistance.

8. Lighting system: LED light source, mold opening automatically turns on the light, mold closing automatically turns off the light

9. Protection system: 5mm acrylic protective cover, which opens or closes with command automatically. Cover will close when power off to keep hands safe. Die closing must use the physical keys on the device side, in case of wrong operation.

10. Intelligent software: provide a powerful data query function, user-friendly design, convenient and fast operation.

11. Languages: simplified Chinese, traditional Chinese, English, Russian
