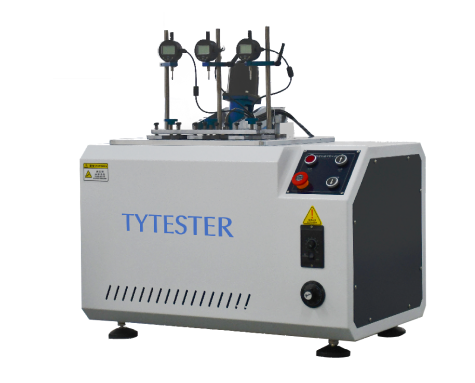

The hot deformation Vicat and softening point temperature tester is mainly used for measuring the hot deformation temperature and Vicat softening point temperature of non-metallic materials such as plastics, rubber, nylon, electrical insulation materials, etc.

This machine uses a PLC programmable controller for temperature regulation and adopts computer display operation. This product is easy to operate, convenient to use, stable in performance, and has high precision. It can also monitor the test temperature and deformation in real-time during the testing process; At the end of the experiment, the system automatically stops heating and can print the test report and test curve. This series of models is an essential instrument for self inspection by various quality inspection units, universities, and enterprises.

1. Equipped with a sample rack lifting function, the sample rack can be raised or lowered at the beginning or end of the test

2. Intelligent PID regulation, accurate heating rate, precise temperature control with no difference

3. Can perform thermal deformation tests on various standard splines

4. Can perform Vicat softening point tests on various standard splines

5. Can conduct both thermal deformation and Vicat softening point tests simultaneously

6. Automatically calculate the required load based on testing standards and spline size

7. Two heating rates can be selected, freely switched, and easy to operate

8. Support multiple tests, color separation of test curves, and intuitive visualization of the testing process for each group of samples

9. Test completed or exceeding the temperature limit, automatically turn off the temperature control and shut down

10. Equipped with dual protection of software over temperature protection and external mechanical over temperature protection, ensuring worry free testing

11. Diversified report settings and comprehensive report printing functions
