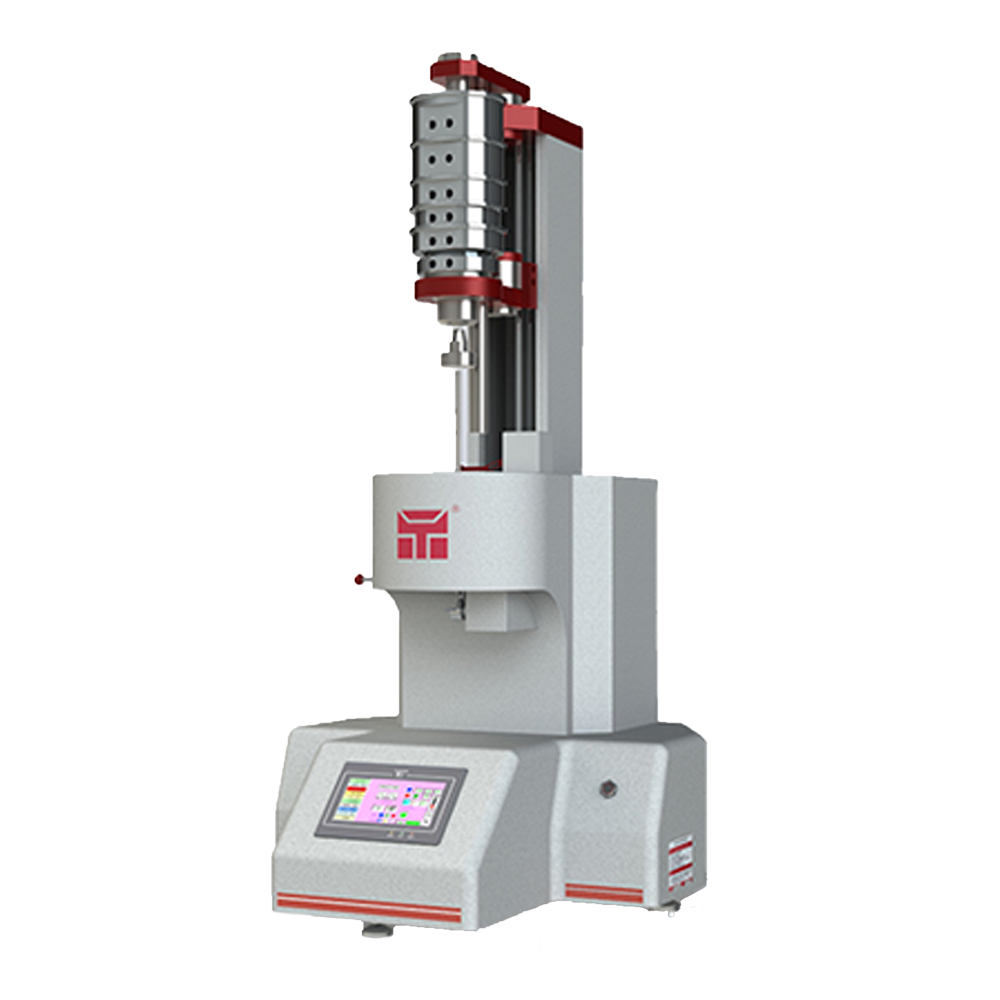

This is a high precision automatic melt flow rate tester, used to determine all kinds of plastics, resins in viscous flow state through a certain temperature and load, every 10min through the standard mold melt flow rate MFR/MVR value.

It is suitable for polycarbonate, polysulfone, fluorine plastic, nylon and other engineering plastics with higher melting temperature, but also suitable for polyethylene (PE), polystyrene (PS), polypropylene (PP), ABS resin, polyformaldehyde (POM), polycarbonate (PC) resin and other plastics with lower melting temperature test.

The equipment is widely used in plastic production, plastic products, petrochemical and other industries as well as the relevant colleges and universities, scientific research units and commodity inspection departments.

ISO 1133,ASTM D1238,GB/T3682，JIS K7210,BS2782

(1) Temperature range: R.T.-450℃

(2) temperature fluctuation: ±0.5℃

(3) Temperature uniformity: ±1℃

(4) Test range: quality method: 0.1-150g/10min; Volume method: 50-5000cm³/10min

(5) Temperature display resolution: 0.1℃

(6) Time display resolution: 0.1S

(7) barrel diameter: Φ2.095±0.005mm, length 152±0.1mm

(8) Discharge port length: 8.000±0.025mm

(9) The diameter of the charging cylinder: Φ9.550±0.025mm

(10) Precision of weight: ±0.5%

(11) Output mode: micro automatic print output

(12) Cutting method: hand automatic cutting

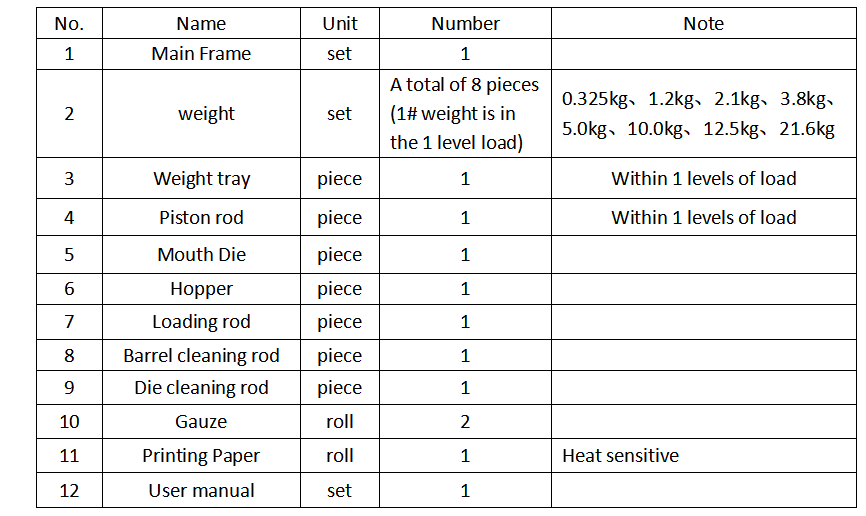

(13) Test load: a total of 8 levels, 8 sets of weights

(14) Supply voltage: AC220V±10% 50HZ
