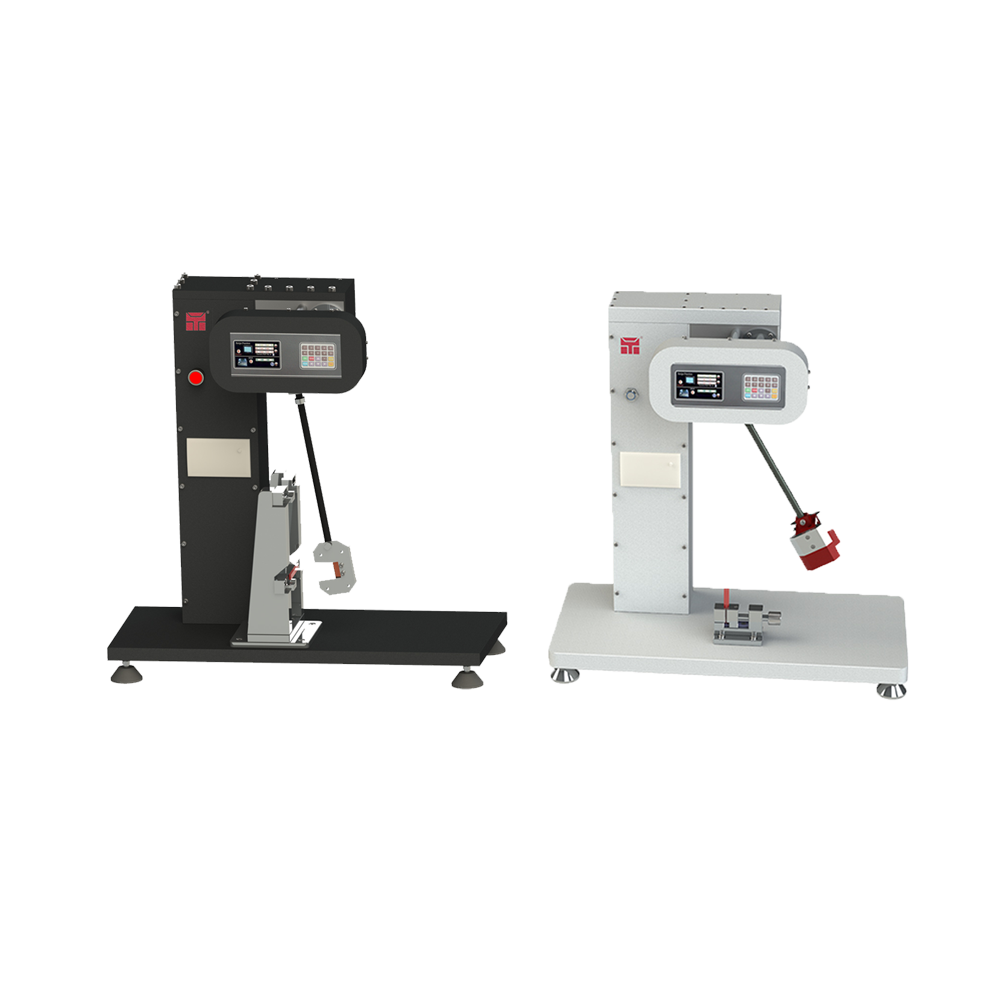

The Izod impact testing machine is used to measure the impact toughness of non-metallic materials such as plastics, reinforced nylon, fiberglass, ceramics, cast stones, plastic appliances, insulation materials, etc.

It is a commonly used equipment for quality inspection by scientific research institutions, universities, and non-metallic material manufacturers.

This machine has a simple structure, convenient operation, high testing accuracy, and functions such as automatic correction of energy loss and printing of test reports.

ISO 180:2000 <Plastics-Determination of Izod impact strength>

ASTM D256-2010 <Standard Test Methods for Determining the Izod Pendulum Impact Resistance of Plastics>

JB/T8761-1998 "plastic Izod impact test”

1. High precision intelligent controller, equipped with LCD display

2. Imported high-resolution digital encoders, higher and more stable angle testing accuracy

3. The impact hammer and imported ball bearings that comply with aerodynamic principles greatly reduce losses caused by machinery friction

4. Use carbon fiber pendulum rods to improve the rigidity of the material, to achieve vibration free impact testing, and increase the service life.

5. The original imported Omron encoder is used, with an accuracy of 0.01 °

6. Automatically calculate the final result, 12pcs data can be saved and calculated the average value

7. Using a micro printer to print test data

8. Chinese/English operation interfaces, and test results can be in units such as J/m, KJ/㎡, kg cm/cm, ft ib/in, etc
