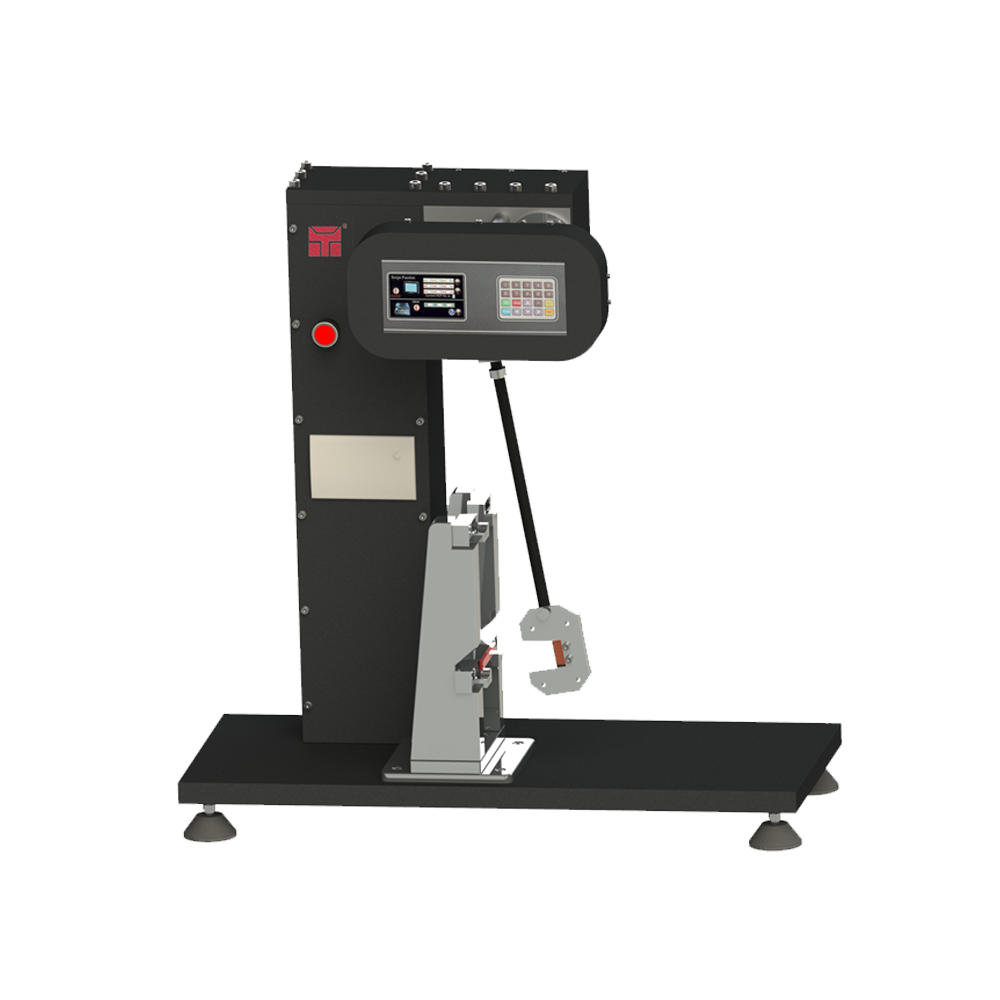

Charpy is mainly used to do the impact test of plastics and hard rubber, glass fiber, glass fiber, glass reinforced plastics, electrical insulation materials, floor tile of pottery and porcelain, cast stone, friction material and so on.

GB/T 1043  "hard plastic beam impact test method"
GB/T 1843  "plastic cantilever beam impact test method"
JB/T8761  "plastic cantilever beam impact test”
JB/T 8762  "plastic beam impact testing machine”

ISO 179 《Plastics-Determination of Charpy impact properties》

GB/T 18743 "fluid with thermoplastic pipe transmission beam impact test method" (that is applicable to pipe impact)

1. Choose imported high precision ball bearing, effective pendulum energy losses to a minimum
2. With high precision photoelectric encoder, to avoid the pointer of the friction energy loss, caused by the equipment operation is simple, easy to use
3. Using carbon fiber shock, reduce the error brought by itself quality factors
4. Can configure multiple pendulum and corresponding support, and easy to change
5. Can increase safety nets, improve the security performance of the tester

6. Equipped with a special liquid crystal display can display the impact absorbing energy and intuitive accurate without having to read data from the dial, without reading error, high accuracy, high efficiency
7. The built-in energy loss can be corrected , making the test results more accurate
8. The printer can print out the test report

9. Customized version can do software even use a computer
