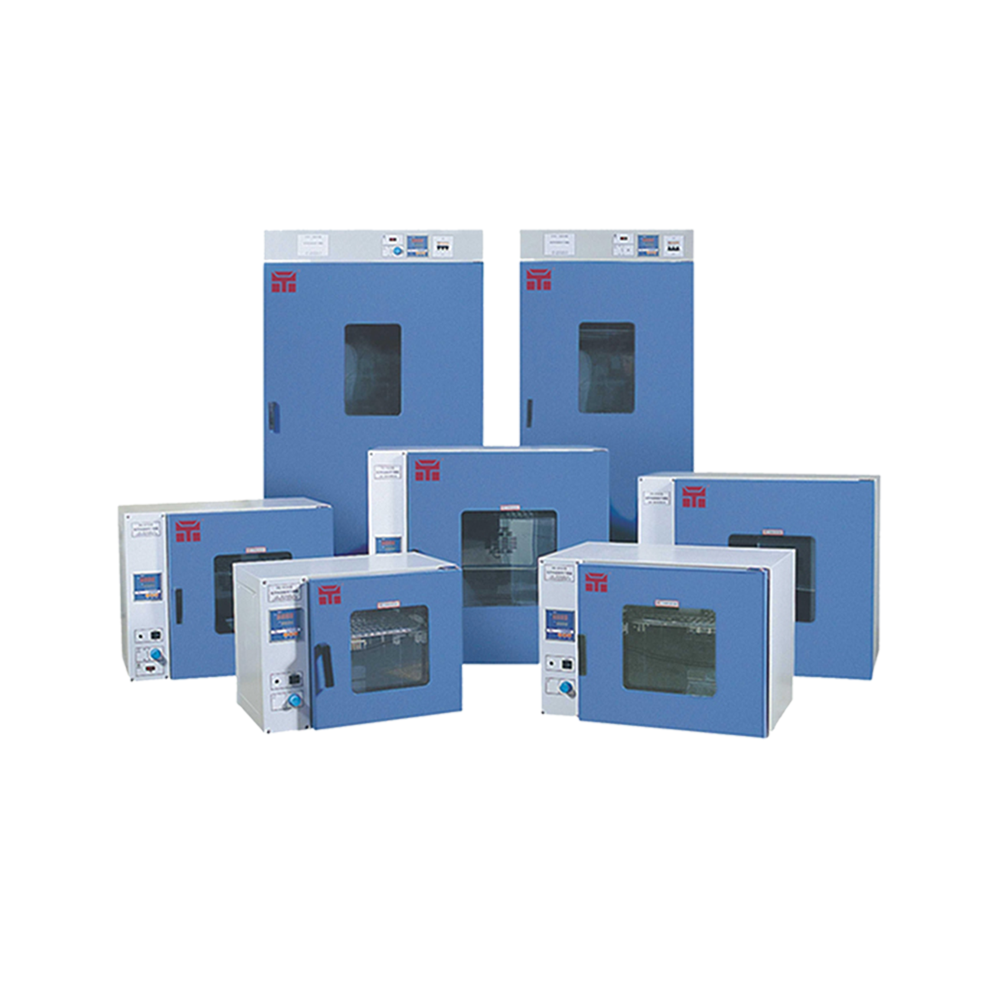

The TY Series Forced Air Drying Oven is suitable for industrial and mining enterprises, laboratories, and research institutions for applications such as drying, baking, wax melting, and sterilization.

JB/T5520-91

Model:   TY-9003

Power Supply:   220V, 50Hz

Temperature Control Range:   RT–200°C

Temperature Fluctuation:   ≤±1°C

Temperature Uniformity:   ≤±2.5°C

Heating Power:   2.4 kW

Chamber Dimensions (D×W×H):   350×450×450 mm

Shelves:   2 tiers

Timer Range:   1–9999 min

Forced Air Circulation:   Yes

1. Construction:

Chamber: Made of cold-rolled steel plate, coated with high-temperature silver paint.

Exterior Shell: Cold-rolled steel plate with high-temperature-resistant baked paint.

Door Seal: Eco-friendly silicone rubber.

2. Temperature Control:

Dual-screen digital display with intelligent PID auto-calculation and automatic control.

3. Air Circulation System:

Motor-driven forced air circulation ensures uniform heat distribution for rapid drying.

Includes 2-tier shelves and 2 mesh plates.

4. Safety Features:

Over-temperature cutoff protection.

Leakage (ground-fault) protection.

1. Grounding: The oven’s shell must be properly grounded for safety.

2. Power Off: Disconnect power after use.

3. No Explosives: Do not place flammable or explosive materials inside (non-explosion-proof design).

4.Ventilation: Install in a well-ventilated area; keep flammable materials away from the oven.

5. Loading: Avoid overcrowding—leave space for proper air circulation.

6. Cleanliness: Maintain cleanliness inside and outside the chamber.

7. High-Temperature Handling: After high-temperature operation, open the door to cool before removing items to prevent burns.

8.Unauthorized Disassembly: Do not dismantle the unit without permission; user assumes liability for damages caused by improper disassembly.
