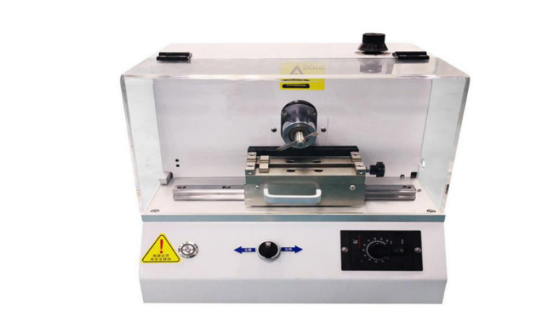

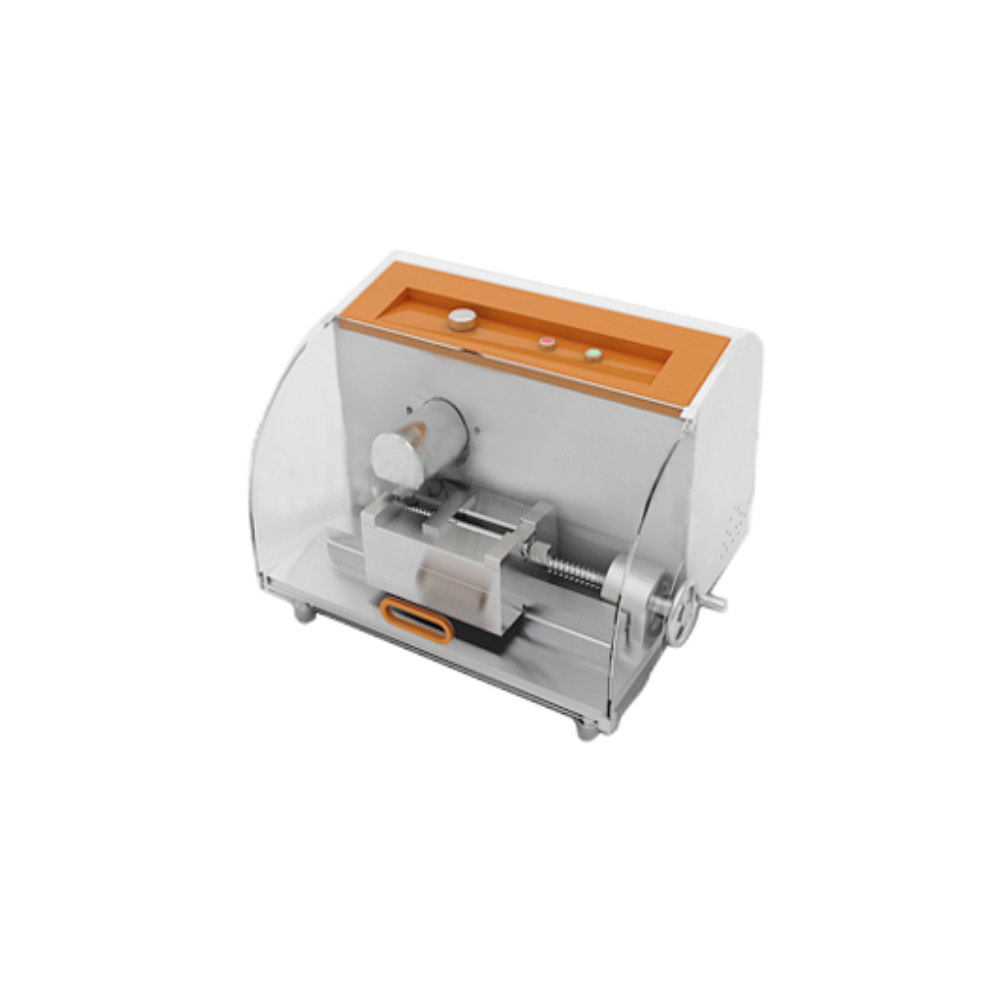

Plastic automatic notched sample making machine is for making the test samples of IZOD and CHARPY. Impact notched prototype equipment can be used for scientific research institutions, colleges and universities, non-metallic material production plants and other units of the laboratory to make notched samples.

ISO180—2000, GB/T1843—2008, JB/T8761—1998, ASTM D256-2010, ISO179—2000,  GB/T1043—2008, JB/T8762—1998

Worktable stroke:  > 160mm

Feed speed:  0-30mm/min adjustable

Sample type:  type 1, type 2, type 3

notch type:  A (standard equipped), B (optional), C (optional)

A:   45±1° r=0.25±0.025

B:   45±1 r=1.0±0.025

C1: 45±1 r=0.1±0.02

C2: thickness 1=2±0.1 r<=0.1

C3: thickness 2=0.8±0.1 r=0.2±0.05
