This system is designed for small-scale production, experimentation, and education in polymer material applications such as filling, blending, modification, and reinforcement. It features mall batch sizes, high efficiency, low cost, and a compact footprint, making it ideal for R&D, formulation synthesis, and pre-production trials.

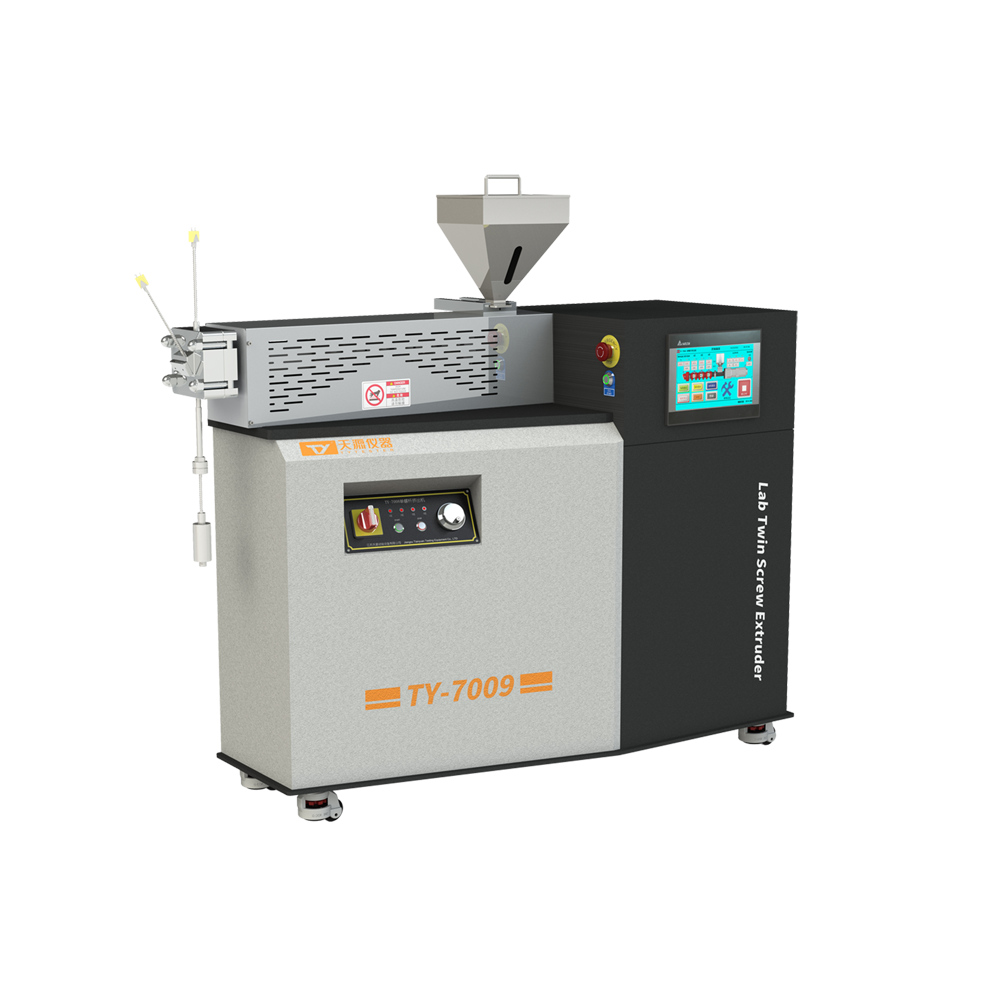

Twin-Screw Compounding Extrusion Line

1. Single-Screw Feeding System

   - Drive Motor: 0.37 kW AC motor

2. Gear Reduction Box

   - Reduction Ratio: 2.5:1

3. Main Motor

   - Power: 4 kW

   - Max Speed: 1500 RPM

4. Modular Screws

   - Screw Diameter: φ21.7 mm

   - L/D Ratio: 40:1

5. Barrel

   - Material: 38CrMoAlA nitrided steel (38-grade nitrided steel base material)

6. Heating System

   - Six temperature-controlled zones with cast aluminum/copper heaters.

   - Max Temperature: 260°C.

7. Vacuum Devolatilization Unit

8. Water Strand Pelletizing Quick-Change Die Head*

   - Two-Hole Die: φ3.5 mm.

9. Electrical Control System

   - Power Supply: 3×380 V, 50 Hz AC

   - Main Motor Control: PLC-based

   - Feeder Control: PLC-integrated

   - Pressure Gauge Range: 0–25 MPa

   - Electrical Control Cabinet: PLC interlocked

10. Interlock Control System

    - Feeder-Host Interlock: Feeder activates only after the main motor starts.

    - Pressure-Host Interlock: Overpressure triggers shutdown of both main motor and feeder.

    - Current-Host Interlock: Overcurrent triggers shutdown of both main motor and feeder.

11. Pelletizing Auxiliary Equipment

    - 1.5 m stainless steel water bath

    - 0.37 kW vortex dryer

    - Pelletizer

12. Spare Parts

    - Twin-screw screw elements: 160 mm

    - Asbestos gloves: 2 pairs

    - Tool kit: 1 set
