Extrusion blown film refers to the technological process that plastics particles are continuously melted and extruded under a certain temperature and shear force, inflated by compressed air, cooled by vane cooling device, and finally be folded by take-up roller.

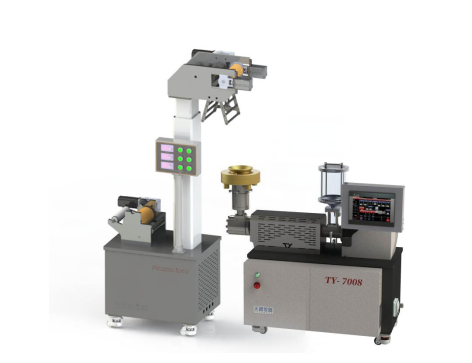

This machine is mainly used for testing the film blowing feasibility of polymer materials and the colloid status contained in the materials, as well as the dispersity of colored dispersion, controlled mixture and extrudate.

1. Screw diameter：Ø20

2. Screw L/D：1：28

3. Screw compression ratio: 2.3:1

4. Screw material: 38CrMoAla

5. Screw speed: 0.1-120rpm (servo motor)

6. Transmission system: 1:16 planetary gearbox+synchronous belt

7. Production: approx. 5kg/h

8. Temperature：RT~380℃

9. Heating power：

Barrel heating: Zone 1/Zone 2/Zone 3: Total power 3000W

Film blowing zone: 4 zones/5 zones: total power 2500W

10. Barrel cooling device: KAKU ball insert cooling fan

11. Main motor: 1.5KW

12. Electrical control system: PLC programmable 10 inch color touch screen, human-machine interface operation system

13. Volume: Approx. 2150x660x2060mm (W×D×H)

14. Power supply: 3∮, AC380V±10%, 5-60Hz, 5.5KW

15. Weight: Approx. 580kg
