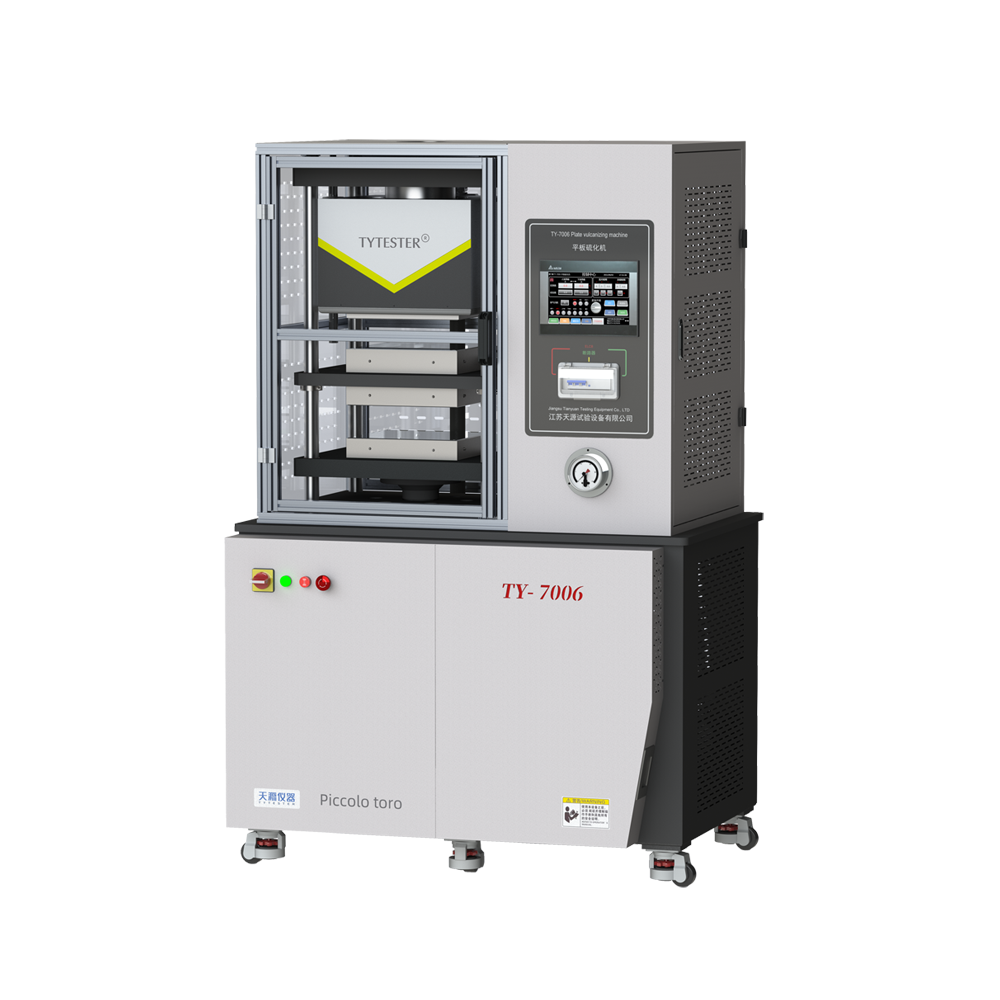

Materials placed in the mold, to pressure and temperature between heating plates forming the raw materials for the test, the machine is equipped with a color touch screen PLC program control, man-machine interface operating system, you can set the pressure, temperature, time and frequency of the curing process, established in full automatic molding process is complete, advanced and reliable.

The gel of raw material (fish eye), black spot, stain, etc.

Raw material pressure, color, mix, sample making

Physical property test, material R&D

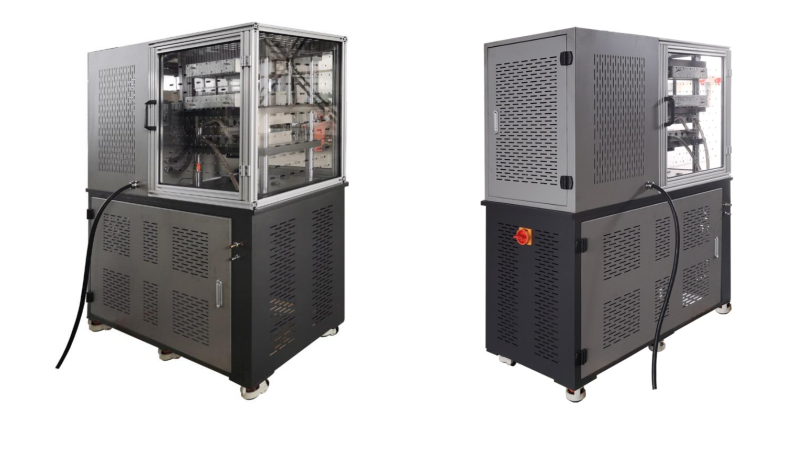

1. Mainframe                   1set

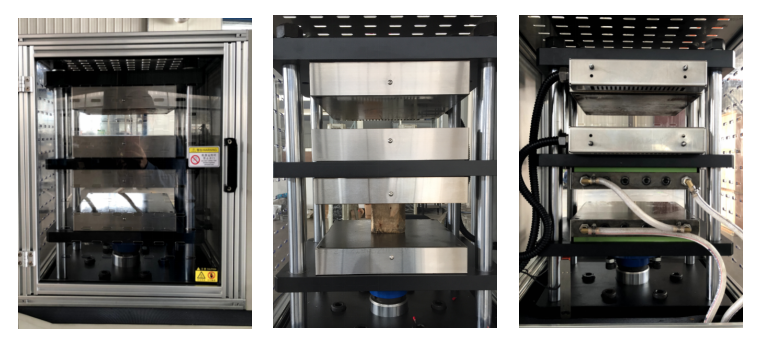

2. Platen                          4pcs

3. SSR (OMRON)            1set

4. Thermostat (DELTA)    1set

5. PLC system (DELTA)   1set

6. Touch screen               1set

7. Hydraulic power unit    1set

8. Safety door                  1set
