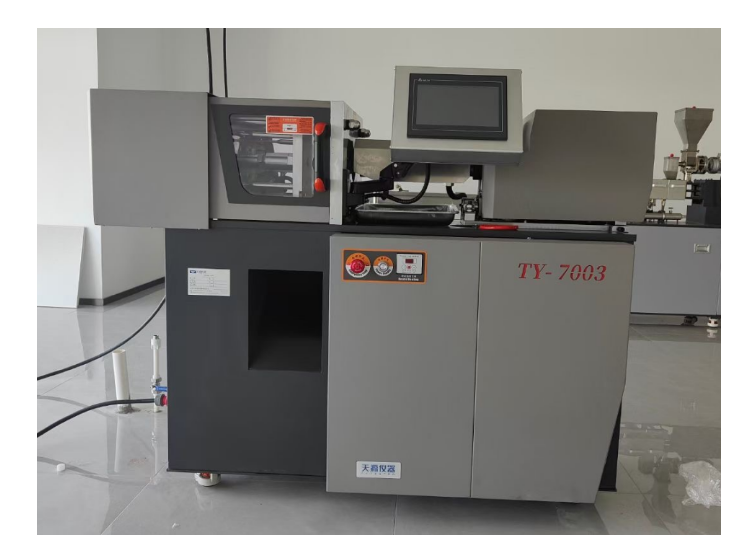

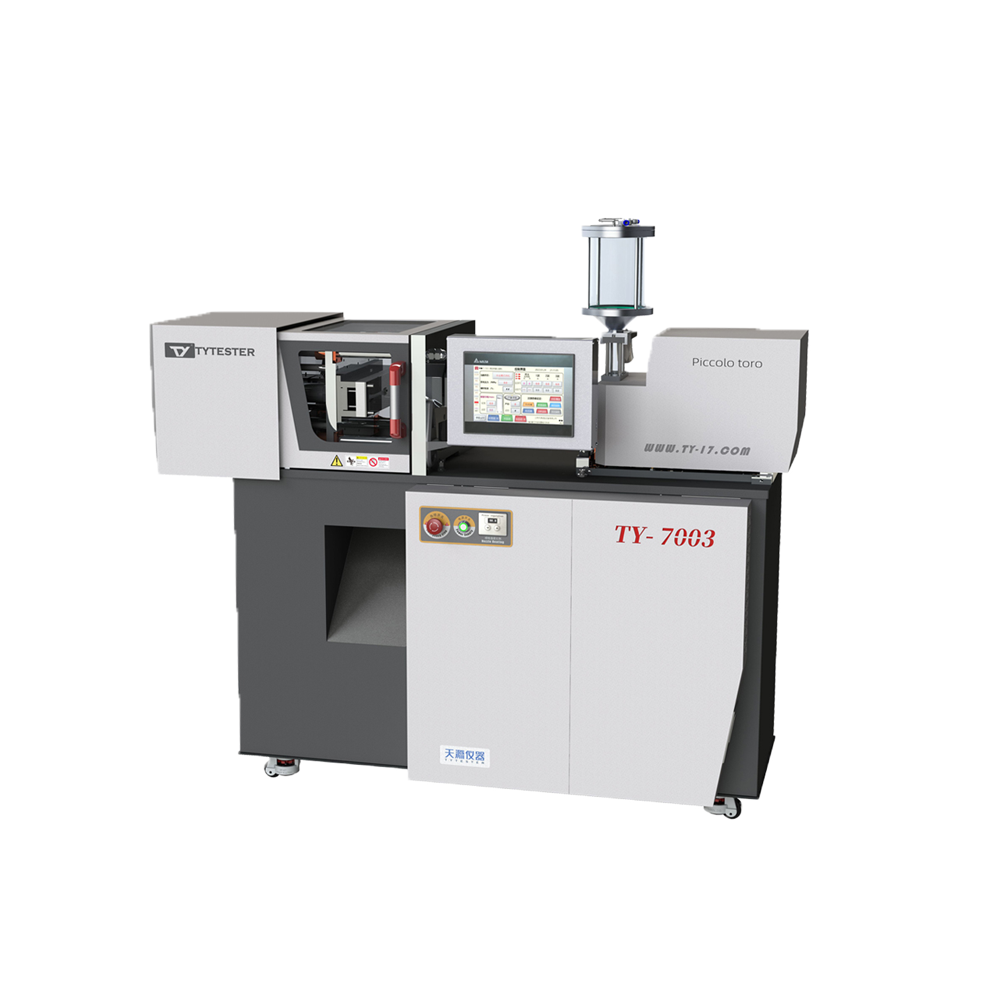

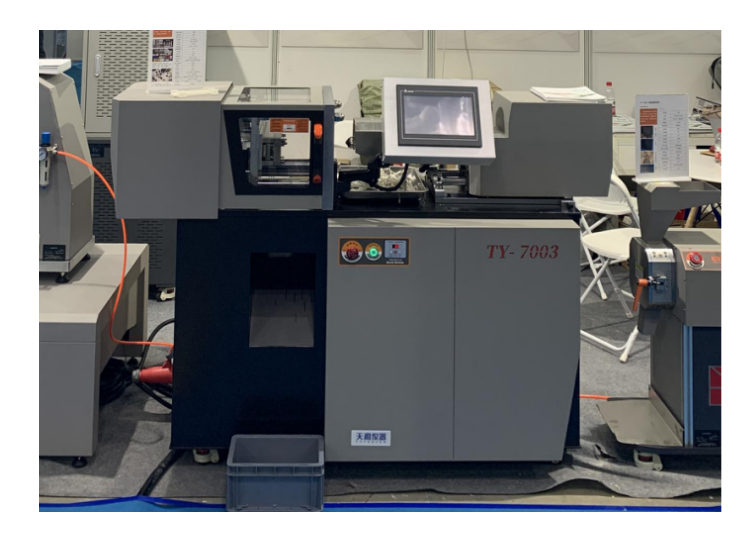

TY-7003H is a miniature and improvement of production injection molding machine, which is composed of clamping device, injection device, driving device and control system.

This machine has the advantages of simple structure, easy handling, raw material saving, low noise and non-pollution.

It is small, easy to move, suitable for classroom teaching, laboratory sample making, small batch production, etc.

1. Small mold is adopted, which is convenient to manufacture, reasonable cost and convenient to replace

2. PLC man-machine interface (color touch screen), one button operating system, simple operation and convenient maintenance

3. Adopt mechanical and electronic double protection devices to ensure safety.

4. The single screw structure is adopted, which is more fully plasticized than the plunger structure.

1. Power supply: 380V±10%, 50/60Hz, 5.5KW

2. Oil source: Customers need to bring their own hydraulic oil

3. Water source: if water cooling function is added, customers should prepare water source and water pipe on their own.
