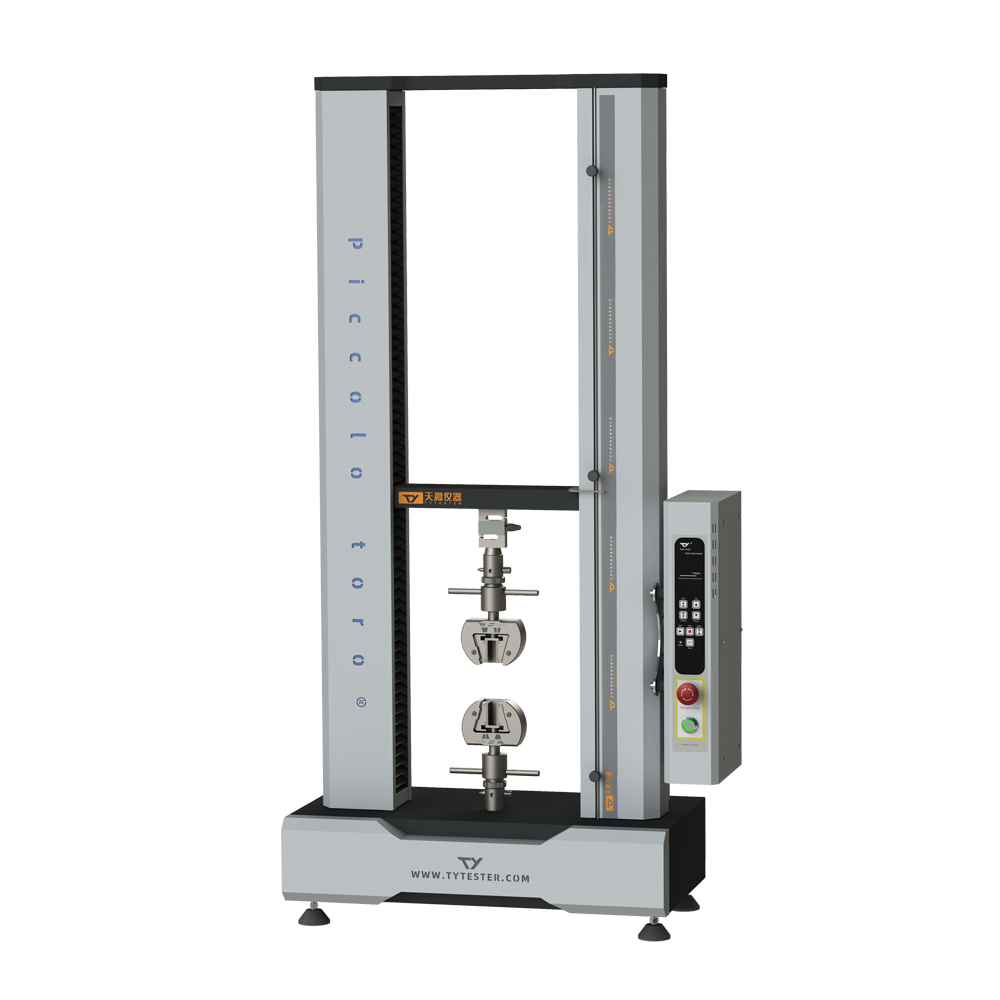

TY8000-B series electronic universal testing machine (frequency control material testing machine) apply for a variety of metals, non-metallic materials tensile, compression, bending, shear, tear, peel, puncture and mechanical properties test. Can test the elongation, tensile strength, bending modulus, yield strength and other indicators.

1.1 High rigidity, high precision, high transmission efficiency Panasonic servo motor and driver.

1.2 Planetary deceleration system drives the ball screw to realize the test loading process.

1.3 Advanced DSP+MCU all-digital closed-loop control system for controlling and measurement.

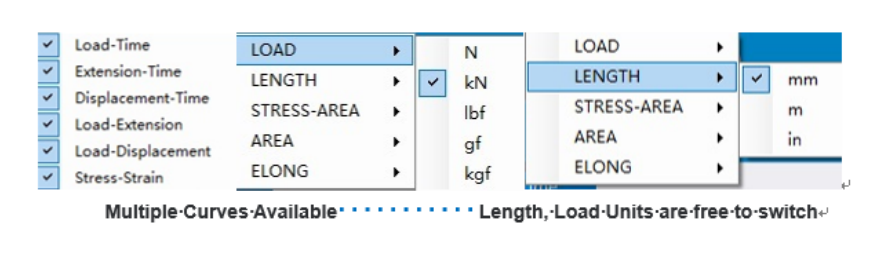

1.4 Easy-to-use software, multiple curve type and dynamic curve display.

1.5 Data acquisition frequency 50z

1.6 High speed data processing system.

1.7 Data can be reanalyzed through the graphical processing module to realize the second edit.

1.8 Excel report can be exported, or printed out directly.

GB/T2611<Testing Machine General Technical Conditions> and GB/T 16491<Electronic Universal Testing Machine>for manufacturing;

GB/T12160<Uniaxial testing machine with extensometer requirements> and GB/T16825<Tensile testing machine> for examination and acceptance;

Applicable ASTM, DIN, ISO, JIS, BS and other international.
