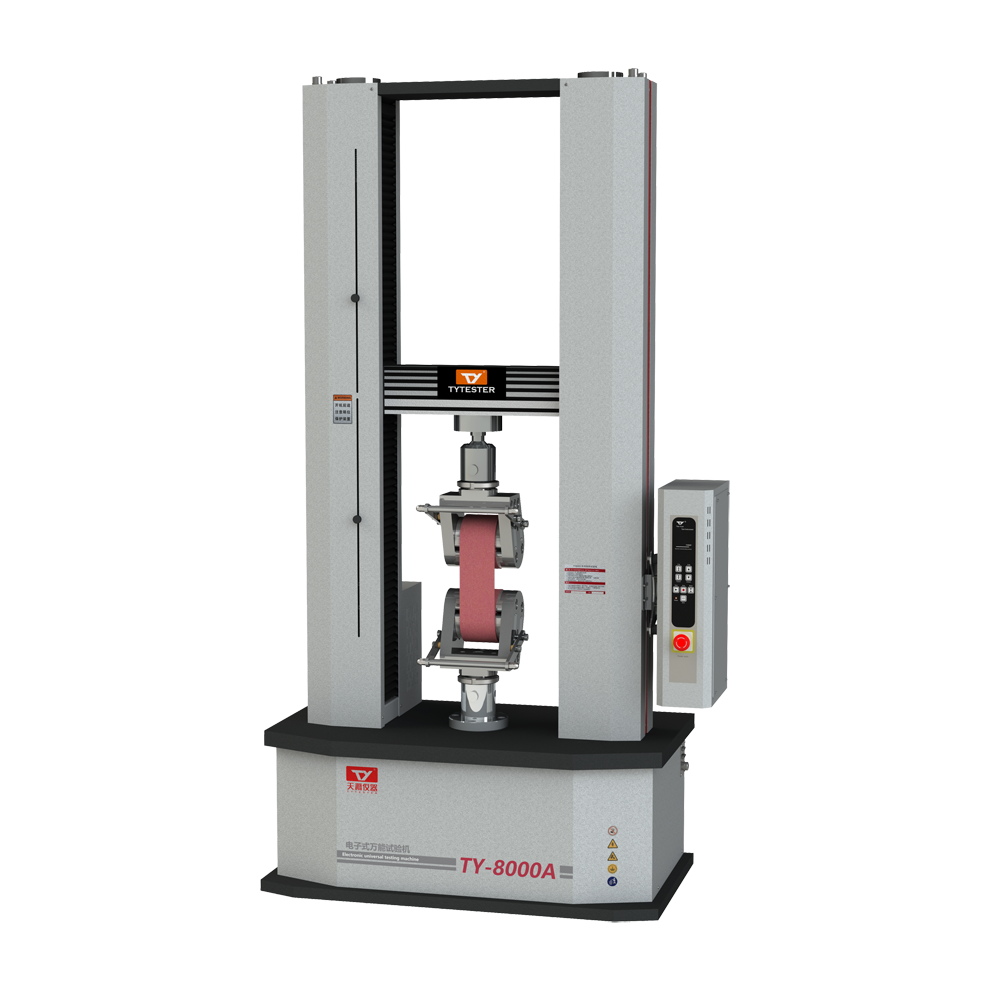

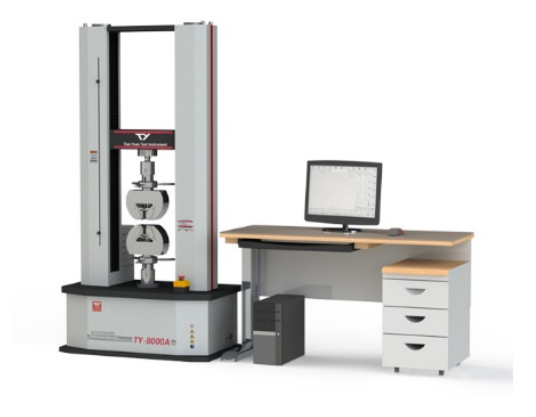

TY8000-A series universal tensile testing machine, is mainly used for conventional performance tests of tensile, compression and bending of metallic and non-metallic materials, and for measuring performance parameters of RP, Rt, ReH, ReL, Rm, E, etc.

The frame structure is double column and double screw gate structure. The speed regulating system is installed on the lower part of the working table. The lower space is tested for stretching, compression, bending and shearing.

a) High rigidity, high precision, high transmission efficiency Panasonic servo motor and driver.

b) Planetary deceleration system drives the ball screw to realize the test loading process.

c) Advanced DSP+MCU all-digital closed-loop control system for controlling and measurement.

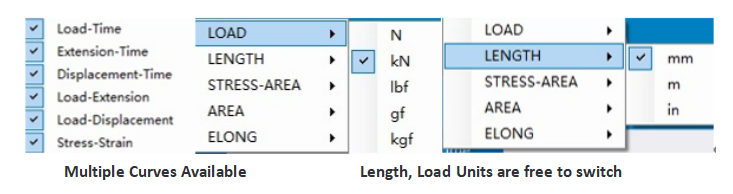

d) Easy-to-use software, multiple curve type and dynamic curve display.

e) High speed data processing system.

f) Data can be reanalyzed through the graphical processing module to realize the second edit.

g) Excel report can be exported, or printed out directly.

GB/T2611<Testing Machine General Technical Conditions> and GB/T 16491<Electronic Universal Testing Machine>for manufacturing;

GB/T12160<Uniaxial testing machine with extensometer requirements> and GB/T16825<Tensile testing machine> for examination and acceptance;

Applicable ASTM、DIN、ISO、JIS、BS and other international standards.
