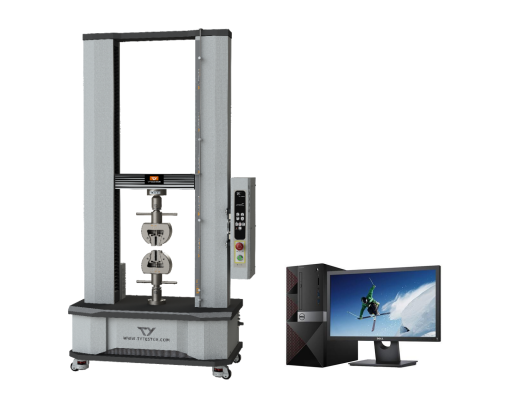

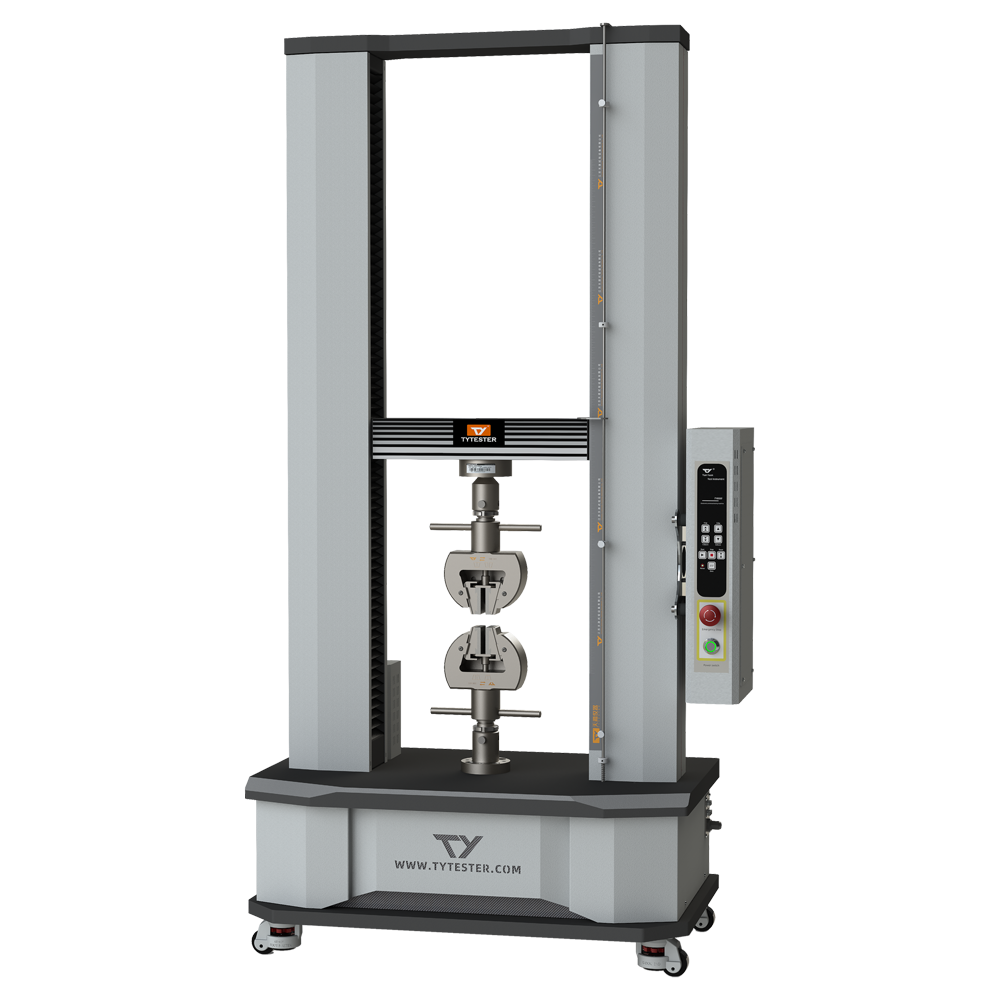

Electronic universal testing machine is suitable for material analysis and inspection of engineering plastics, reinforced nylon, modified plastics, plastic profiles, plastic pipes, plastic sheets and films. TY-8000A series of servo motor universal testing machine’s performance reaches international advanced level, is widely used for testing the tensile elastic modulus, bending elastic modulus, compression modulus, yield strength, tensile strength, fracture strength, elongation at break, compression stress, compression strain, shear, peel, tear and other mechanical properties of various thermosetting and thermoplastic plastics

a) High rigidity, high precision, high transmission efficiency Panasonic servo motor and driver.

b) Planetary deceleration system drives the ball screw to realize the test loading process.

c) Advanced DSP+MCU all-digital closed-loop control system for controlling and measurement.

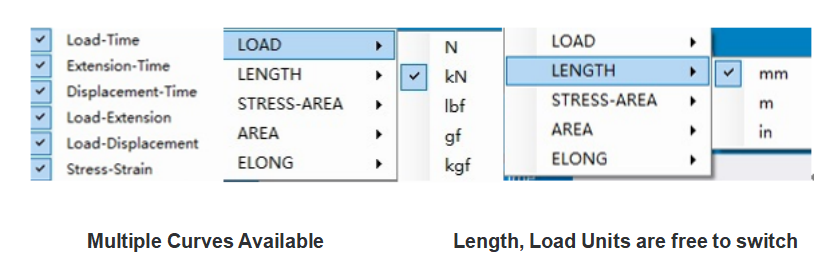

d) Easy-to-use software, multiple curve type and dynamic curve display.

e) Data acquisition frequency up to1000Hz (need to be customized)

f) High speed data processing system.

g) Data can be reanalyzed through the graphical processing module to realize the second edit.

h) Excel report can be exported, or printed out directly.

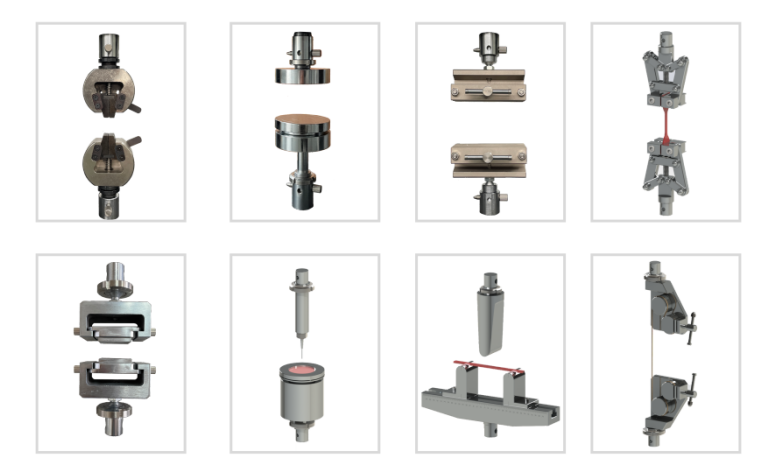

Optional Fixtures

GB/T2611<Testing Machine General Technical Conditions> and GB/T 16491<Electronic Universal Testing Machine>for manufacturing;

GB/T12160<Uniaxial testing machine with extensometer requirements> and GB/T16825<Tensile testing machine> for examination and acceptance;

Applicable ASTM、DIN、ISO、JIS、BS and other international standards.
