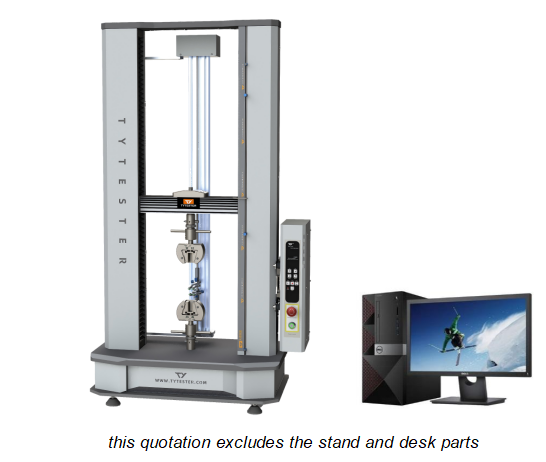

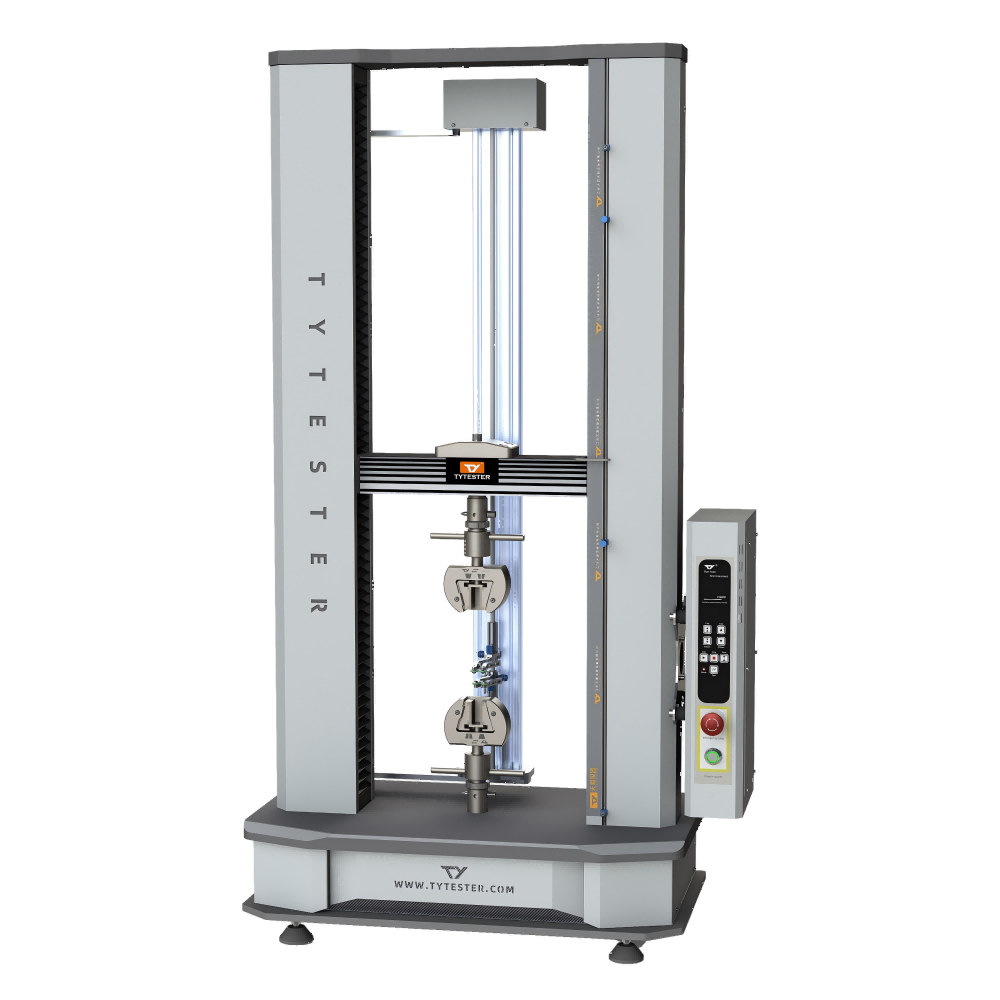

TY8000-A series of electronic universal testing machine (Servo Control Material Testing Machine) applies to all kinds of metal, non-metallic materials subjected to tensile, compression, bending, shear, tearing, peel, puncture and other mechanical properties, you can also carry out constant velocity loaded, constant velocity displacement, automatic control, and low-cycle Loadings cycle, deformation circulation, displacement function of loop. To strike elongation, tensile strength, flexural modulus, modulus of elasticity, yield strength, the net energy, foldback energy, the total energy and other indicators.

a) High rigidity, high precision, high transmission efficiency Panasonic servo motor and driver.

b) Planetary deceleration system drives the ball screw to realize the test loading process.

c) Advanced DSP+MCU all-digital closed-loop control system for controlling and measurement.

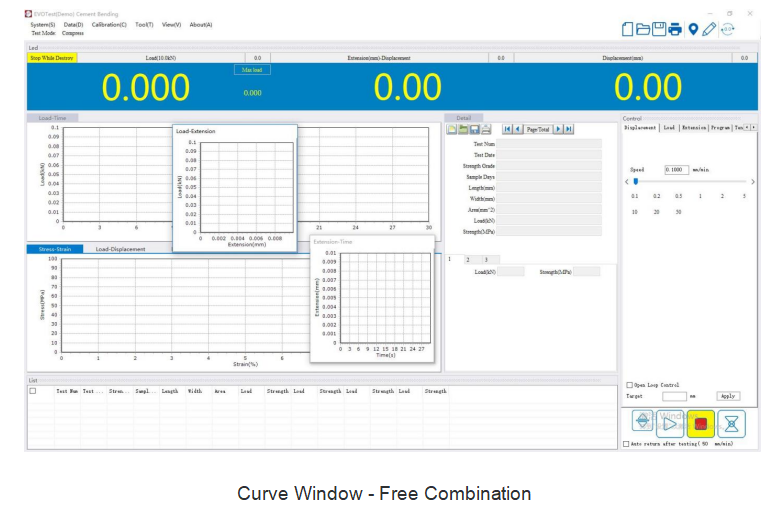

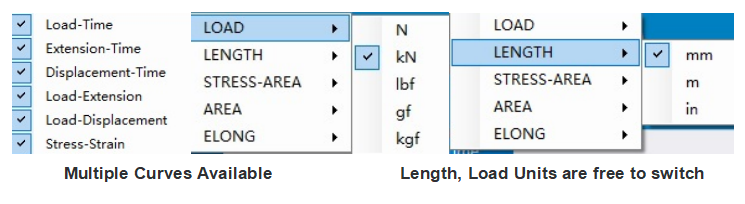

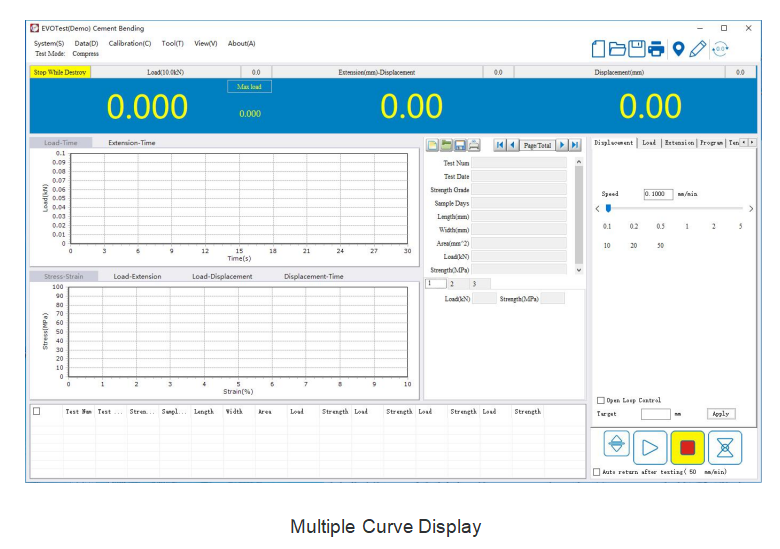

d) Easy-to-use software, multiplecurve type and dynamic curve display.

e) Data acquisition frequency up to1000Hz (need to be customized)

f) High speed data processing system.

g) Data can be reanalyzed through the graphical processing module to realize the second edit.

h) Excel report can be exported, or printed out directly.
